Materials:
high quality carbon steel tube or pipe, Q235 grade.
Welding:
360 degree firmly welded--welding spots neat and smooth, prevent sheep and goat get hurt, very safe
welding spots anti-rust finish, very durable
Design:
square vertical pipe/post, welding easy and firm, much durable, and it's more beatiful
oval horizontal rails, no sharp edge, can protect sheep and goat from getting hurt, high safety
lamb-proof rail spacing
middle braces for high strength and heavy duty
with welded top caps and foot plates, water and dust proof
welded "U" and "L" lugs for easy connection. The lugs are welded to bracket all four sides, very durable.
2xjoining pins are supplied for each panel
Stype1: round tube style
| material | Pre hot dipped galvanized steel pipe |
| Finishing( zinc coating) | more than 15 microns |
| Length*length | 1800mm*2100mm |
| Vertical pipe | 32mmO.D*1.6mm thickness 42mmO.D*1.6mm thickness |
| Horizontal rails | 32mmO.D*1.6mm thickness 42mmO.D*1.6mm thickness (6 round rails) |
| welding | Fully welded post brackets |
| welds | Bulling bars are fully welded, each weld is protected with epoxy paint |
Stype2: Oval tube style
| material | Pre hot dipped galvanized steel pipe |
| Finishing( zinc coating) | more than 15 microns |
| Length*length | 1800mm*2100mm |
| Vertical pipe | 50*50mm*1.6mm thickness 40*40mm*1.6mm thickness |
| Horizontal rails | 40*80mm*1.6mm thickness 30.60mm*1.6mm thickness |
| welding | Fully welded post brackets |
| welds | Bulling bars are fully welded, each weld is protected with epoxy paint |
Stype3:Square tube style
| material | Pre hot dipped galvanized steel pipe |
| Finishing( zinc coating) | more than 15 microns |
| Length*length | 1800mm*2100mm |
| Vertical pipe | 50*50mmRHS*1.6mm thickness 40*40mmRHS*1.6mm thickness |
| Horizontal rails | 50*50mmRHS*1.6mm thickness 40*40mmRHS*1.6mm thickness (6 square rails) |
| welding | Fully welded post brackets |
| welds | Bulling bars are fully welded, each weld is protected with epoxy paint |

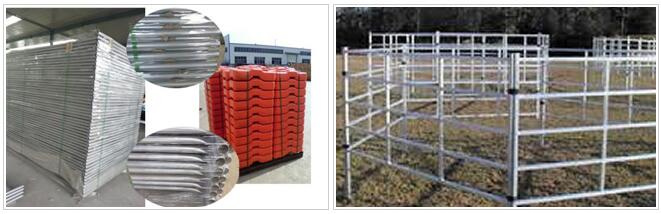

Temporary fence 2
| Wire Diameter | 3.00-5.00mm(4.0mm is popular) |
| Welded Mesh | 60*150mm,75*75mm,75*100mm,60*75mm (60*150mm is popular) |
| Surface Treatment | Hot dip galvanized or electric galvanized |
| Plastic Feet | Blow-molding plastic feet:600*220*150mm Injection-molding plastic feet:560*240*150mm |
| Fastening system(Between the center) | 75mm,80mm,90mm |
Materials:
high quality carbon steel tube or pipe, Q235 grade.
Welding:
360 degree firmly welded--welding spots neat and smooth, prevent sheep and goat get hurt, very safe
welding spots anti-rust finish, very durable
Design:
square vertical pipe/post, welding easy and firm, much durable, and it's more beatiful
oval horizontal rails, no sharp edge, can protect sheep and goat from getting hurt, high safety
lamb-proof rail spacing
middle braces for high strength and heavy duty
with welded top caps and foot plates, water and dust proof
welded "U" and "L" lugs for easy connection. The lugs are welded to bracket all four sides, very durable.
2xjoining pins are supplied for each panel
Stype1: round tube style
| material | Pre hot dipped galvanized steel pipe |
| Finishing( zinc coating) | more than 15 microns |
| Length*length | 1800mm*2100mm |
| Vertical pipe | 32mmO.D*1.6mm thickness 42mmO.D*1.6mm thickness |
| Horizontal rails | 32mmO.D*1.6mm thickness 42mmO.D*1.6mm thickness (6 round rails) |
| welding | Fully welded post brackets |
| welds | Bulling bars are fully welded, each weld is protected with epoxy paint |
Stype2: Oval tube style
| material | Pre hot dipped galvanized steel pipe |
| Finishing( zinc coating) | more than 15 microns |
| Length*length | 1800mm*2100mm |
| Vertical pipe | 50*50mm*1.6mm thickness 40*40mm*1.6mm thickness |
| Horizontal rails | 40*80mm*1.6mm thickness 30.60mm*1.6mm thickness |
| welding | Fully welded post brackets |
| welds | Bulling bars are fully welded, each weld is protected with epoxy paint |
Stype3:Square tube style
| material | Pre hot dipped galvanized steel pipe |
| Finishing( zinc coating) | more than 15 microns |
| Length*length | 1800mm*2100mm |
| Vertical pipe | 50*50mmRHS*1.6mm thickness 40*40mmRHS*1.6mm thickness |
| Horizontal rails | 50*50mmRHS*1.6mm thickness 40*40mmRHS*1.6mm thickness (6 square rails) |
| welding | Fully welded post brackets |
| welds | Bulling bars are fully welded, each weld is protected with epoxy paint |
Temporary fence 2
| Wire Diameter | 3.00-5.00mm(4.0mm is popular) |
| Welded Mesh | 60*150mm,75*75mm,75*100mm,60*75mm (60*150mm is popular) |
| Surface Treatment | Hot dip galvanized or electric galvanized |
| Plastic Feet | Blow-molding plastic feet:600*220*150mm Injection-molding plastic feet:560*240*150mm |
| Fastening system(Between the center) | 75mm,80mm,90mm |
